CNC Double-Side & Four-Side Milling Machine

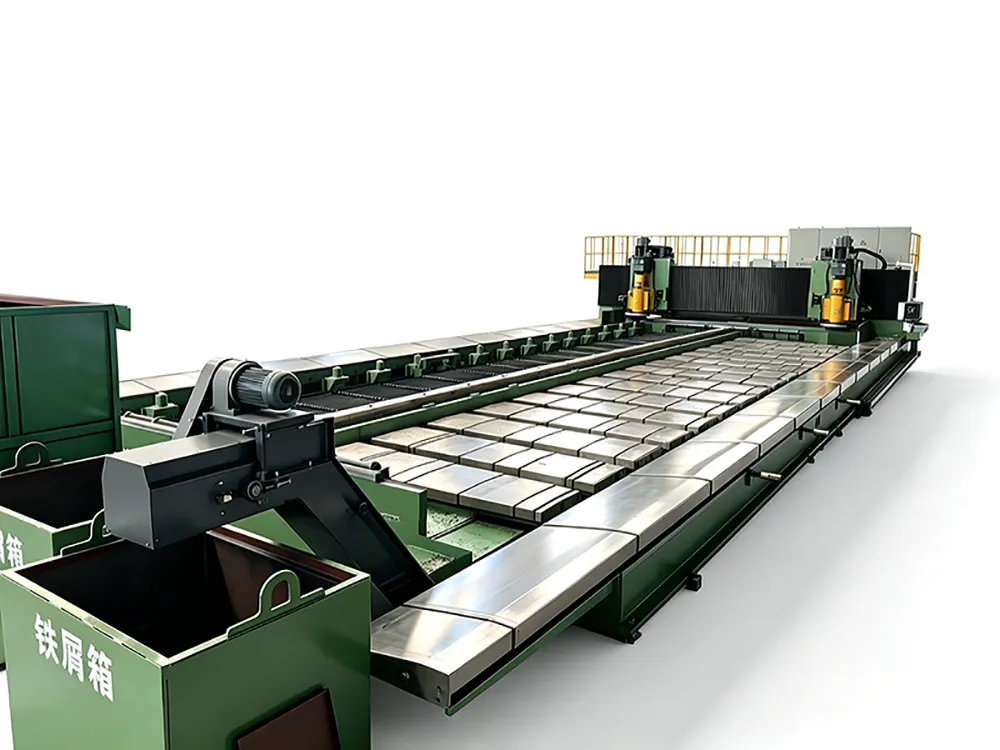

This equipment is designed for the highly efficient four-sided beveling of steel plates. It employs continuous milling around the plate's perimeter to produce the welding preparations required. It is widely used in industries such as steel structure, bridge construction, pressure vessels, chemical and environmental protection engineering, construction machinery, and shipbuilding.The CNC intelligent beveling robot is a new type of high-efficiency, heavy-duty processing equipment independently...
-
CNC Double-Side & Four-Side Milling Machine

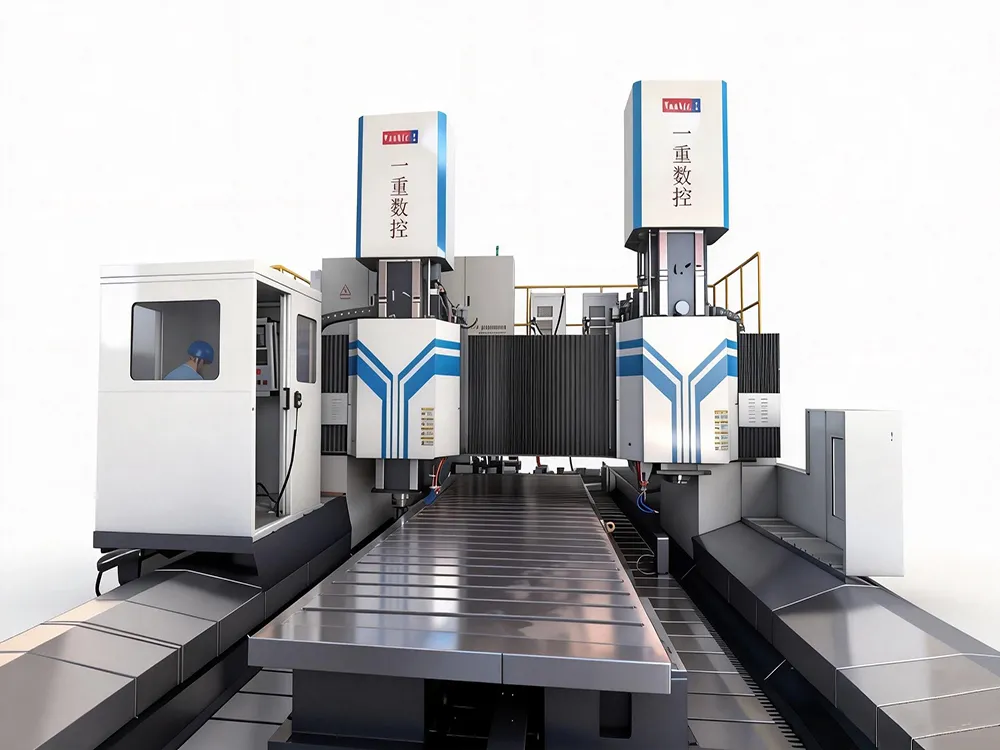

The SKPL-16035 CNC Beveling Machining Center is a new type of high-efficiency, heavy-duty processing equipment independently developed by Jiangsu Yizhong. Featuring excellent system rigidity, high precision, long service life, and high reliability, it boasts high positioning accuracy, smooth operation, and low energy consumption, fully meeting the demands of enterprises for efficient production.This equipment is designed for the highly efficient four-sided beveling of plates. It employs continuo...
-
CNC Double-Side & Four-Side Milling Machine

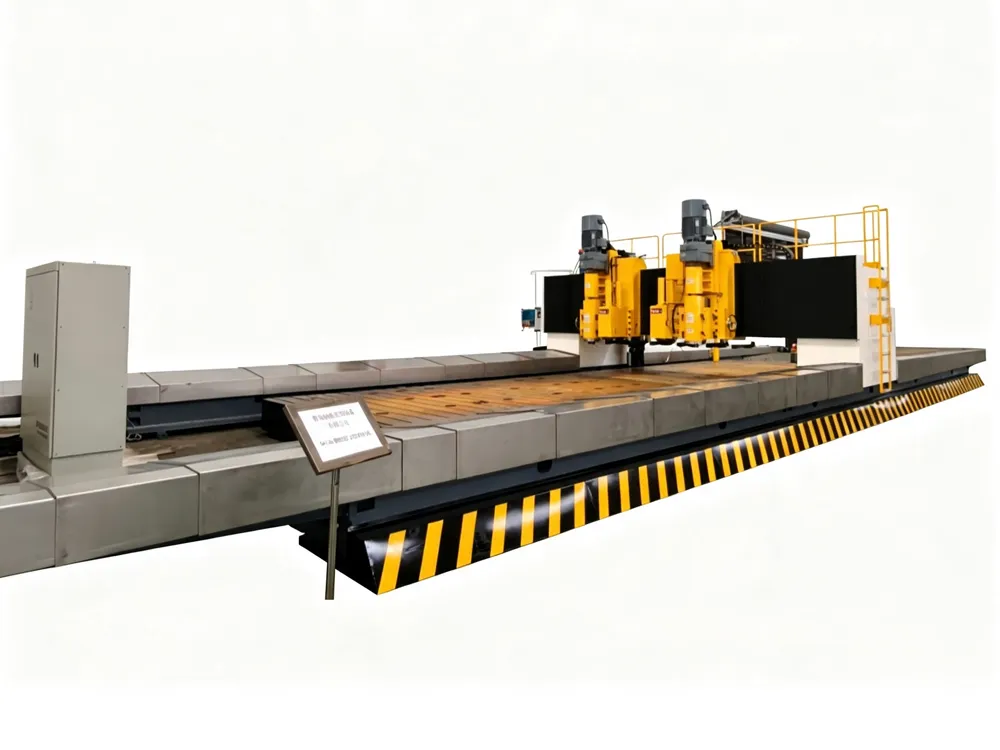

The CNC Gantry Double-Side Edge Milling Machine consists of a bed assembly, worktable, gantry assembly, heavy-duty milling power heads, chip removal system, hydraulic system, and control system. The basic components of the machine tool adopt a welded structure. The manufacturing process is as follows: welding → overall annealing for stress relief → shot blasting surface treatment → rough machining → vibratory stress relief (secondary) → finish machining. Through these procedures, the components...
-
CNC Double-Side & Four-Side Milling Machine
This series of machine tools can mill and form X, Y, V, and U-type grooves for stainless steel plates, carbon steel, and composite plates in a single pass prior to welding. The processing efficiency is 10 to 15 times higher than that of conventional planing and edge milling machines, with significantly improved precision and lower overall energy consumption. It is widely used in industries such as environmental protection engineering, pressure vessels, shipbuilding, electric power, chemical engi...
-
CNC Double-Side & Four-Side Milling Machine

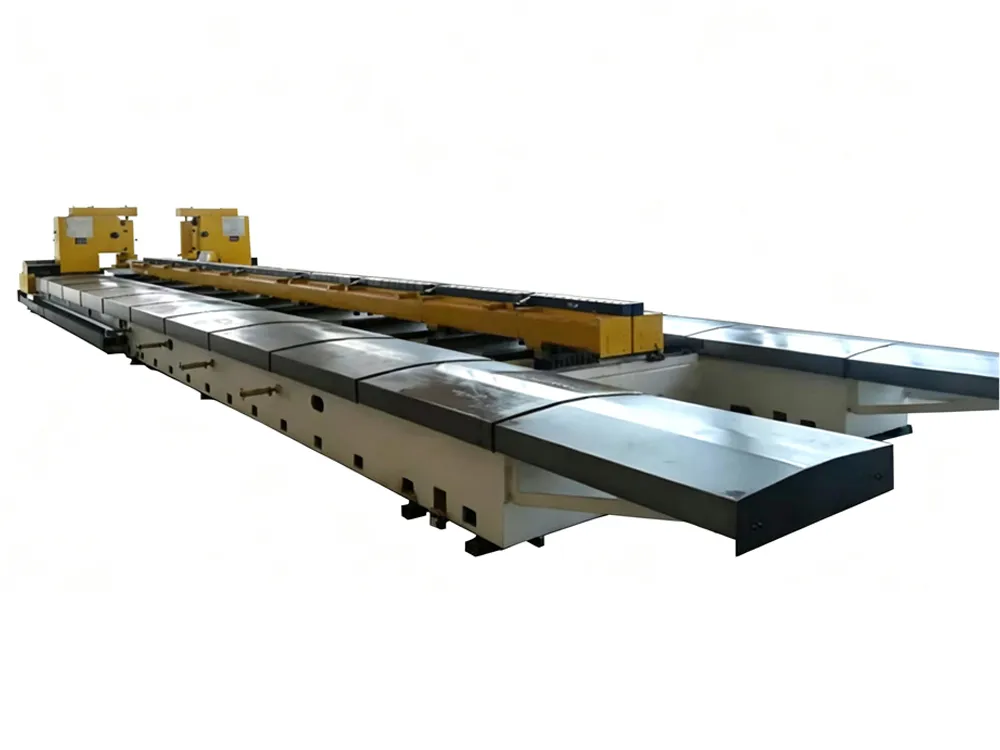

This equipment is designed to continuously mill both sides along the length of the steel plate according to specified requirements, producing the welding preparations needed.Main Machine DescriptionThe bilateral milling mechanism comprises mobile milling units, a machine bed and base, a plate alignment mechanism, and mobile suction cups.Mobile Milling UnitThe mobile milling unit consists of a milling power mechanism, a feed/retract slide mechanism, and a main drive structure.Machine BedThe machi...
-
CNC Double-Side & Four-Side Milling Machine

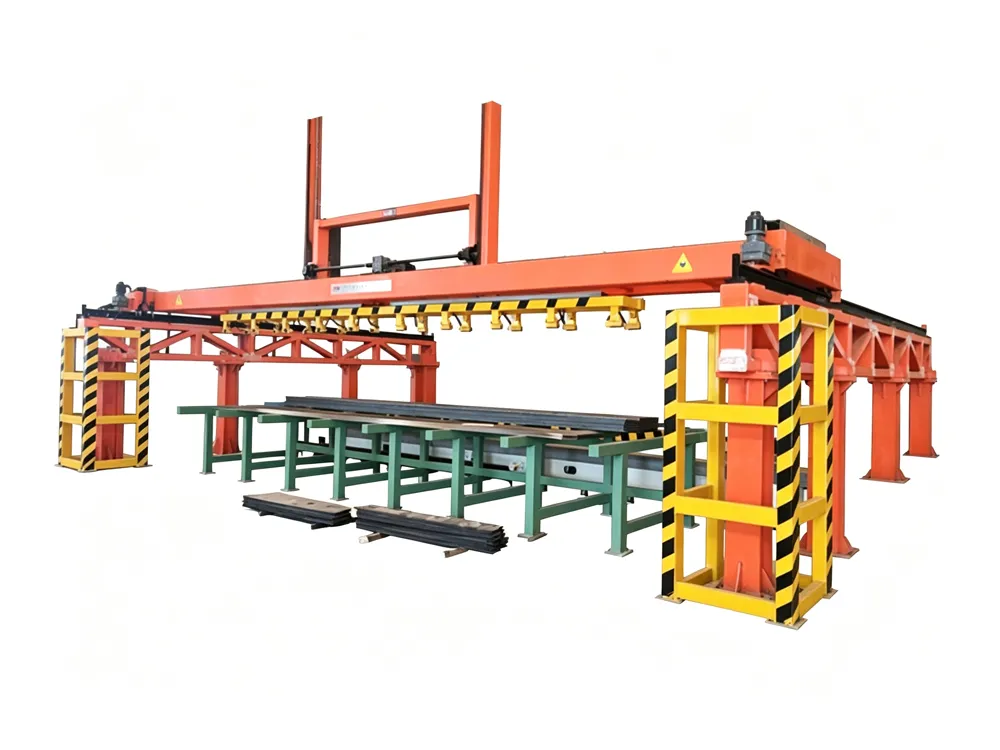

Machine Purpose and Function:The primary purpose of this machine is to continuously mill both sides along the length of the steel plate according to specified requirements, producing the welding preparations needed.Each spindle can operate simultaneously according to the CNC program and features milling functions. The milling heads can work independently or in coordination. The system is equipped with a position self-locking protection function.Additional functional features include:Tool load mo...
-
CNC Double-Side & Four-Side Milling Machine

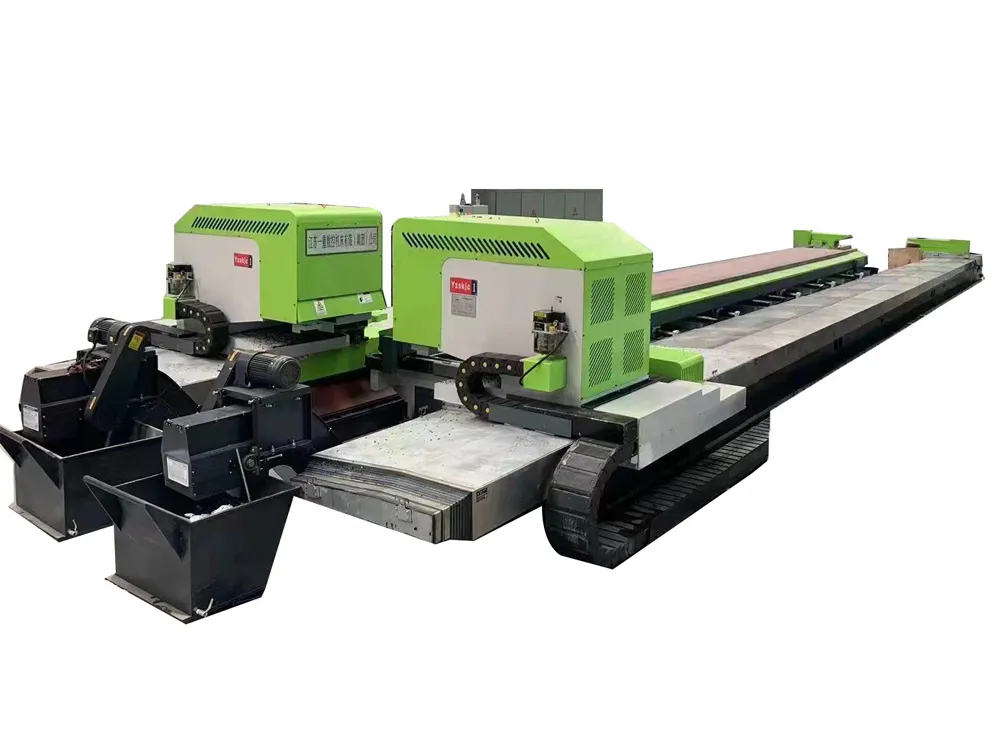

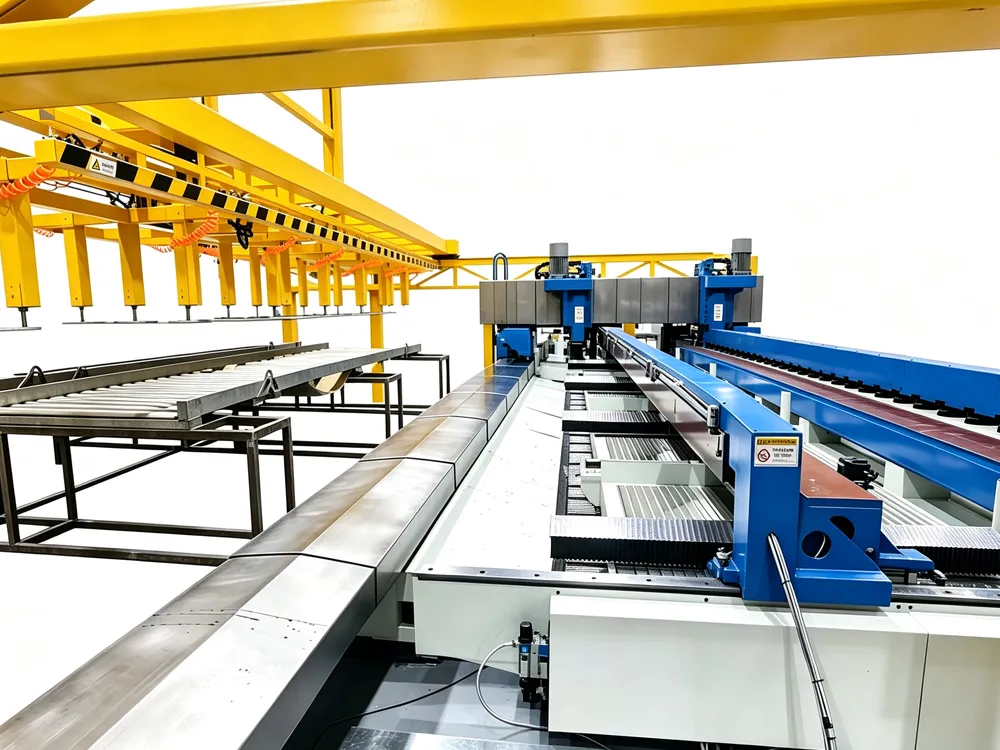

The SKSCX-12000 CNC Plate Bilateral Beveling Mill is an independently developed machine featuring a fixed worktable and mobile milling heads. Its main characteristics include automatic positioning, high-speed cutting, and one-pass beveling formation.It is widely used in various mechanical processing fields, such as steel structure bridges, pressure vessels, chemical and environmental protection engineering, construction machinery, shipbuilding, and aerospace. The entire processing procedure is c...
-
CNC Double-Side & Four-Side Milling Machine

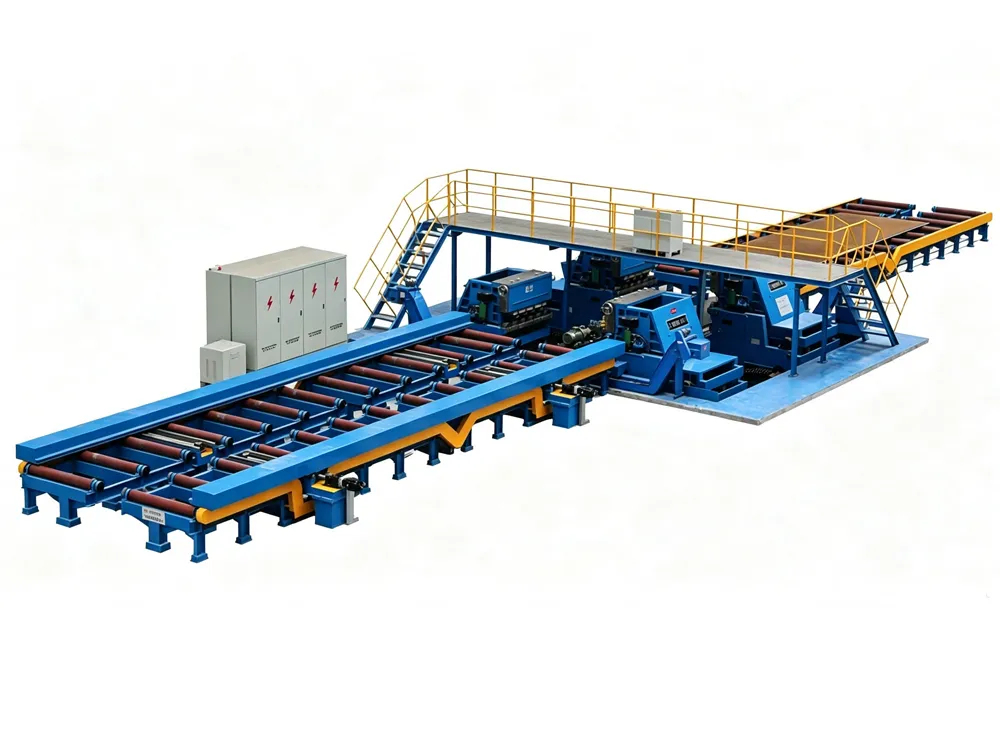

Application:This equipment is designed to continuously mill both sides along the length of the boom plates for truck-mounted cranes. It can mill the required welding preparations and end faces in a single pass.Main Machine Description:The bilateral milling mechanism comprises mobile milling units, a machine bed and base, a plate alignment, clamping, and feeding mechanism, mobile suction cups, a roller conveyor, and an automatic loading and unloading system.Mobile Milling UnitThe mobile milling u...
-
CNC Double-Side & Four-Side Milling Machine

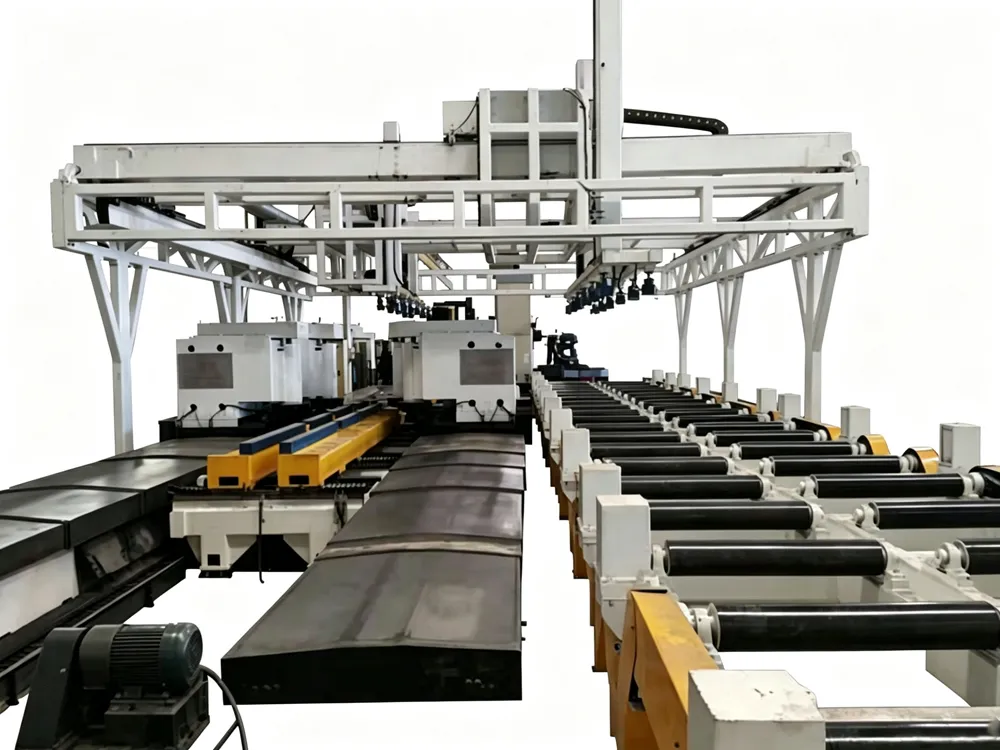

Machine Purpose and Function:The primary purpose of this machine is to continuously mill both sides along the length of the steel plate according to specified requirements, producing the welding preparations needed.The bilateral milling mechanism comprises mobile milling units, a machine bed and base, a plate alignment, clamping, and feeding mechanism, mobile suction cups, and an automatic loading and unloading system.Note: Technical parameters can be modified according to customer requirements.
-
CNC Double-Side & Four-Side Milling Machine

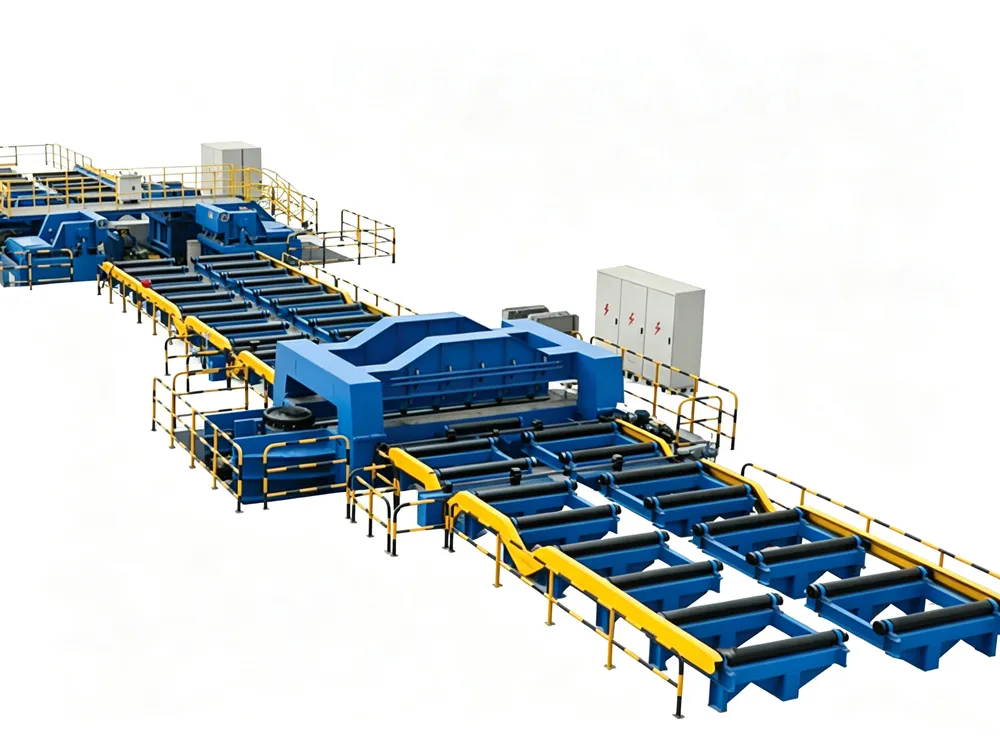

The CNC Roller Bed Plate Four-Sided Beveling Milling Machine is a specialized beveling processing equipment designed for the plate prefabrication scenarios in steel structures, pressure vessels, and construction machinery. It can automatically complete the bevel milling and forming of all four sides of a plate in a single pass. The processing thickness ranges from 6mm to 180mm, with no limit on processing length. The length of cut-to-size single plates can be set according to user selection, and...
