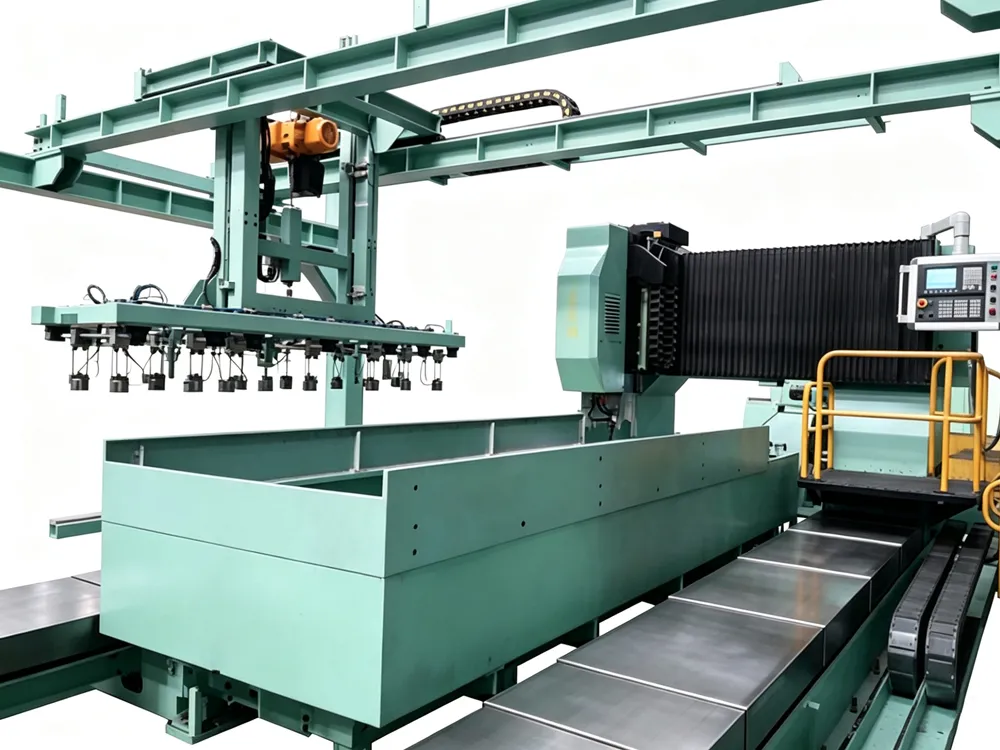

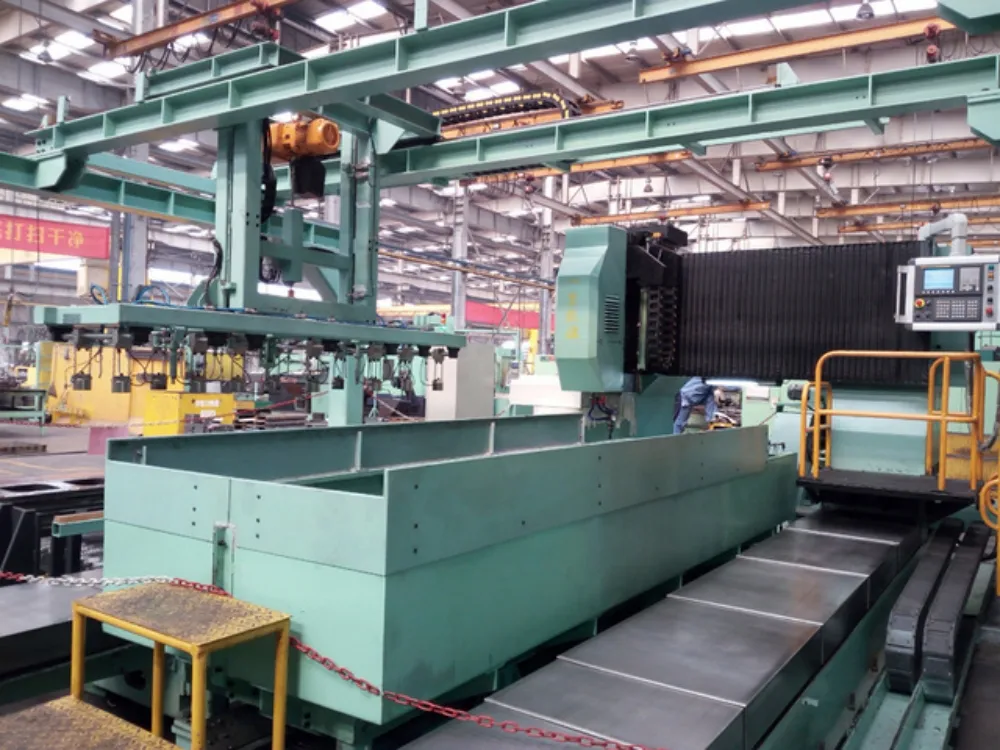

Our company's CNC Drilling Machines feature the following characteristics:

CNC Slide Table Drilling Power Head: Capable of controlling hole depth, with functions for drilling blind holes, expanding holes, and chamfering.

Automatic Point Location: The CNC flat-bed drilling machine automatically locates points in the X and Y directions for drilling operations.

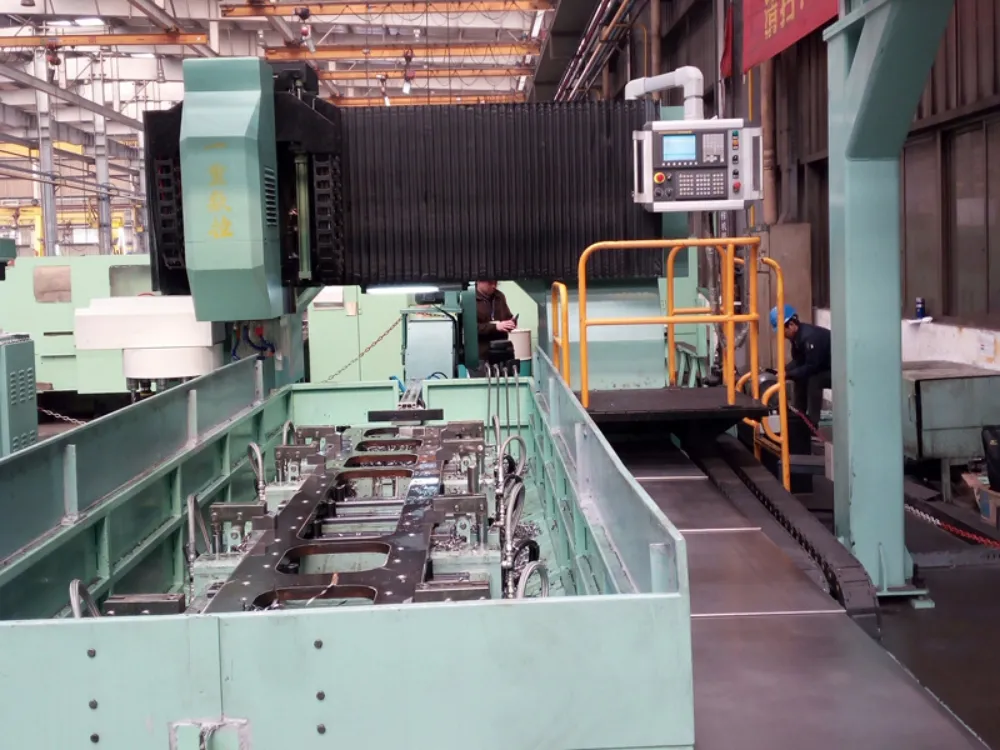

Multi-Station Processing: The machine features four processing positions and 12 hydraulic clamps, allowing it to hold four sets of workpieces simultaneously. Workpieces can be loaded and unloaded while drilling is in progress.

CNC & PLC Control: The machine is controlled by a CNC and PLC system, featuring a CRT display.

Advanced Programming Software: The programming software is Windows-based and includes a CAD interface, enabling fast, convenient programming with intuitive visual previews.

Automatic Chip Removal: The machine features an automatic chip removal system, and the coolant is recycled for continuous use.

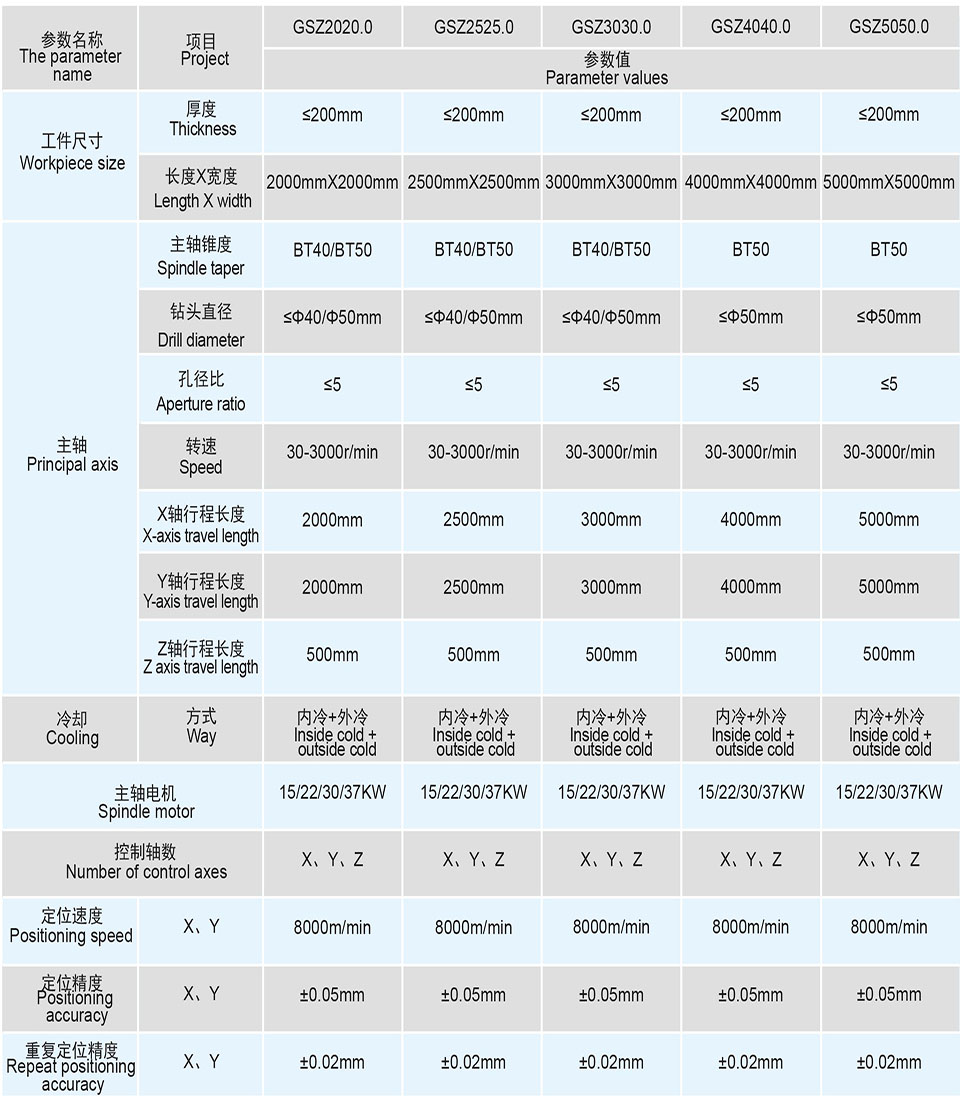

Technical Parameters

Note: Technical parameters can be modified according to customer requirements.
