1. Basic Performance of the Machine Tool

Finite Element Analysis (FEA) was applied to this machine tool to effectively predict and optimize its static and dynamic performance. This ensures reliable machine performance and provides a high cost-performance ratio.

This is a CNC gantry drilling machine with a movable worktable, primarily used for the automatic drilling and tapping of 50-series (two types) rear frames. It supports high-speed internal coolant drilling with carbide drills, or conventional external coolant drilling with standard HSS twist drills. It is widely used in industries such as construction machinery, steel structures, bridges, pressure vessels, chemical and environmental protection, and shipbuilding. The machining process is digitally controlled (CNC), making it highly user-friendly, and capable of automated, high-precision, high-mix, and high-volume production.

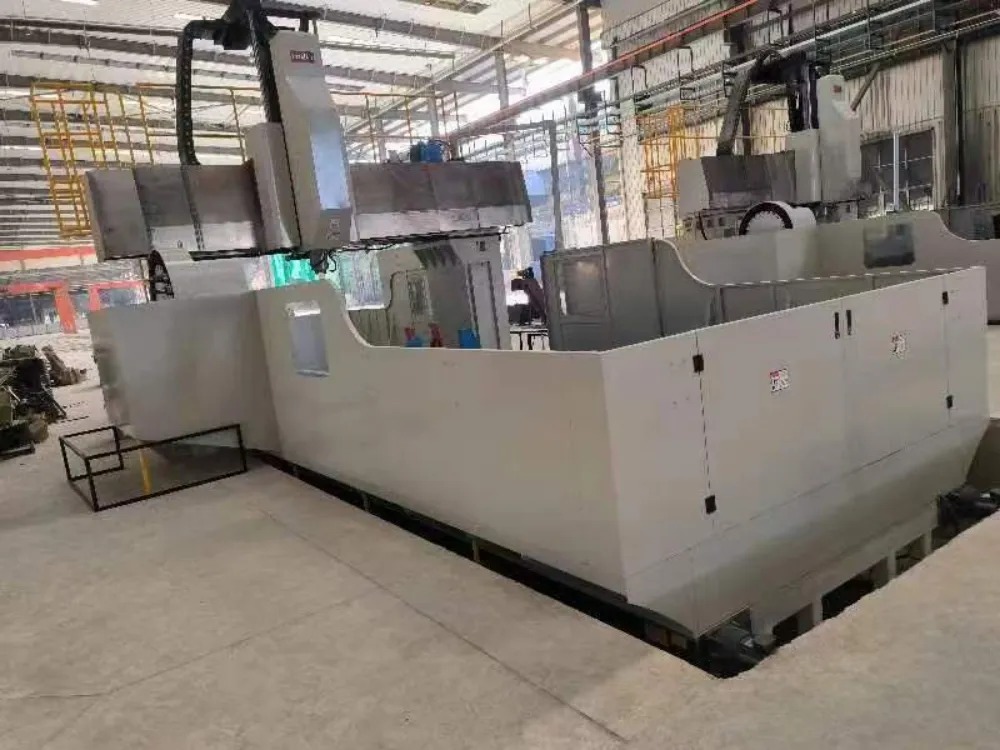

2. Main Components of the Machine Tool

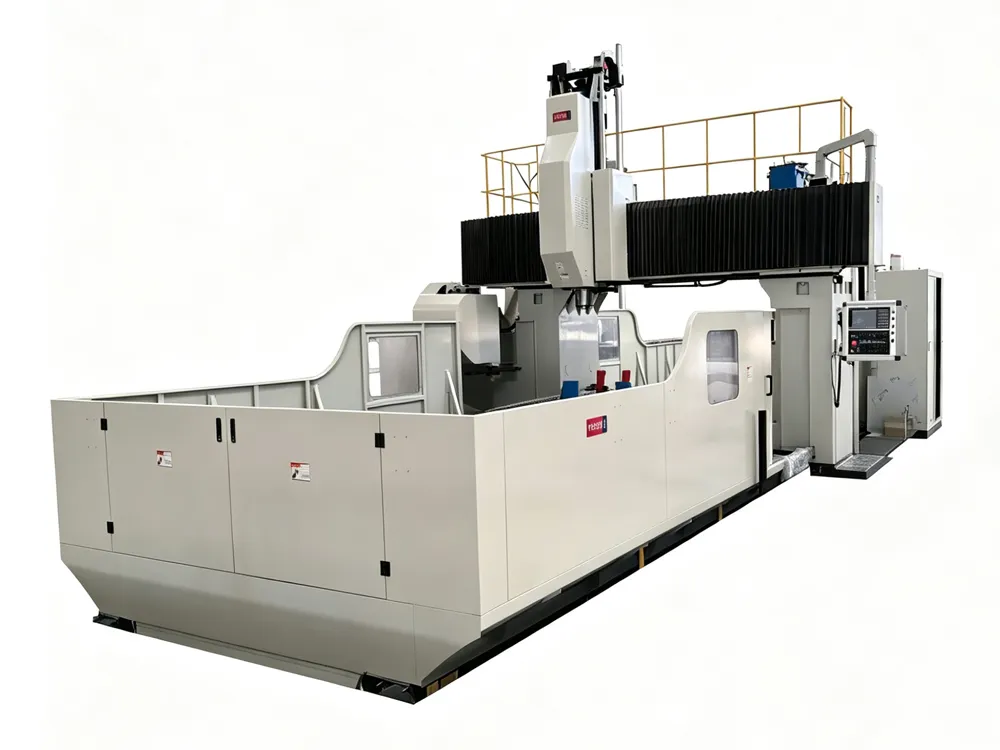

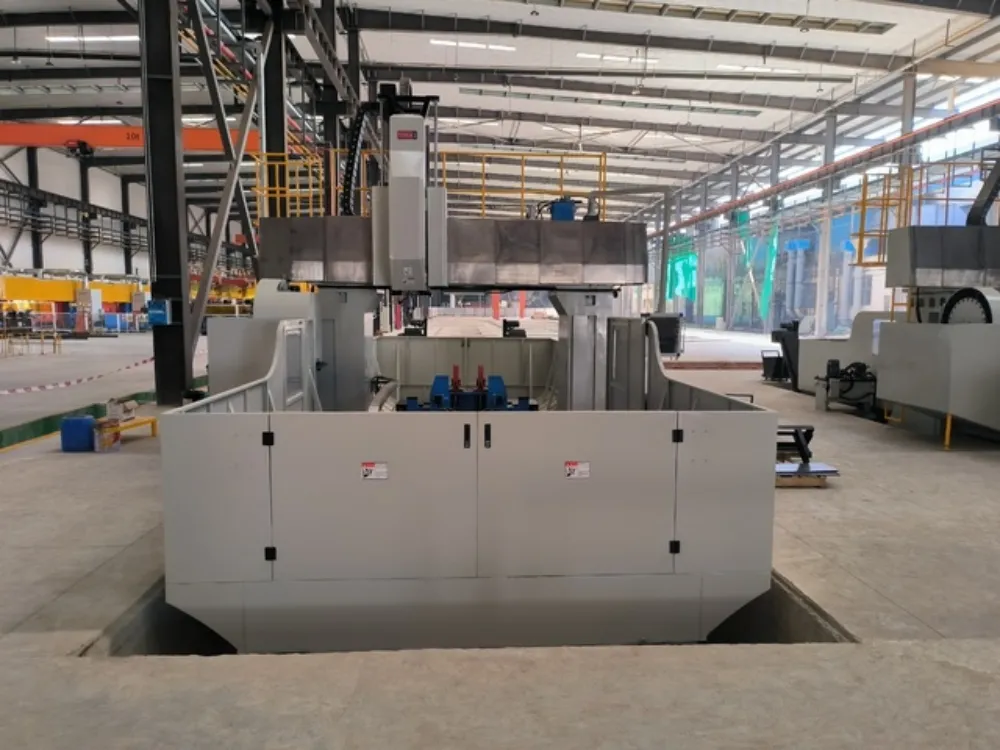

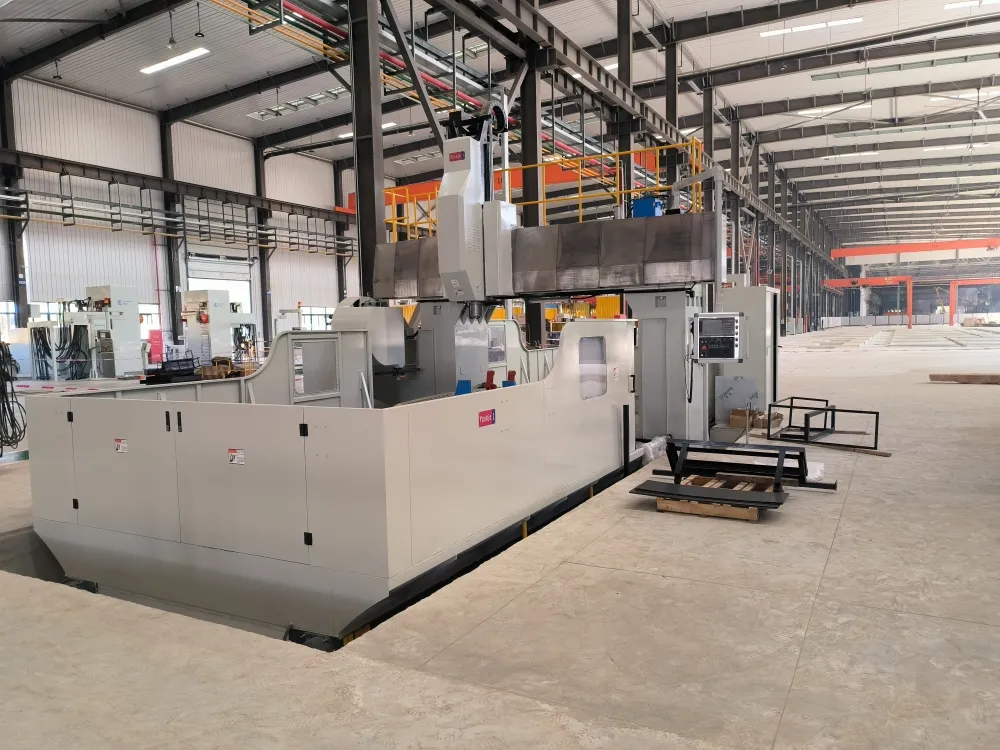

The main functional components and key parts of the machine are of premium quality, utilizing imported or well-known brand supporting products. Its structure mainly consists of a bed, worktable, hydraulic fixtures, columns, gantry frame, cross slide, ram-type drilling power head, lubrication system and safety guards, chip removal system, coolant circulation system, hydraulic balancing system, touch probe system, electrical system, CNC system, disc-type tool magazine, and cutting tools.

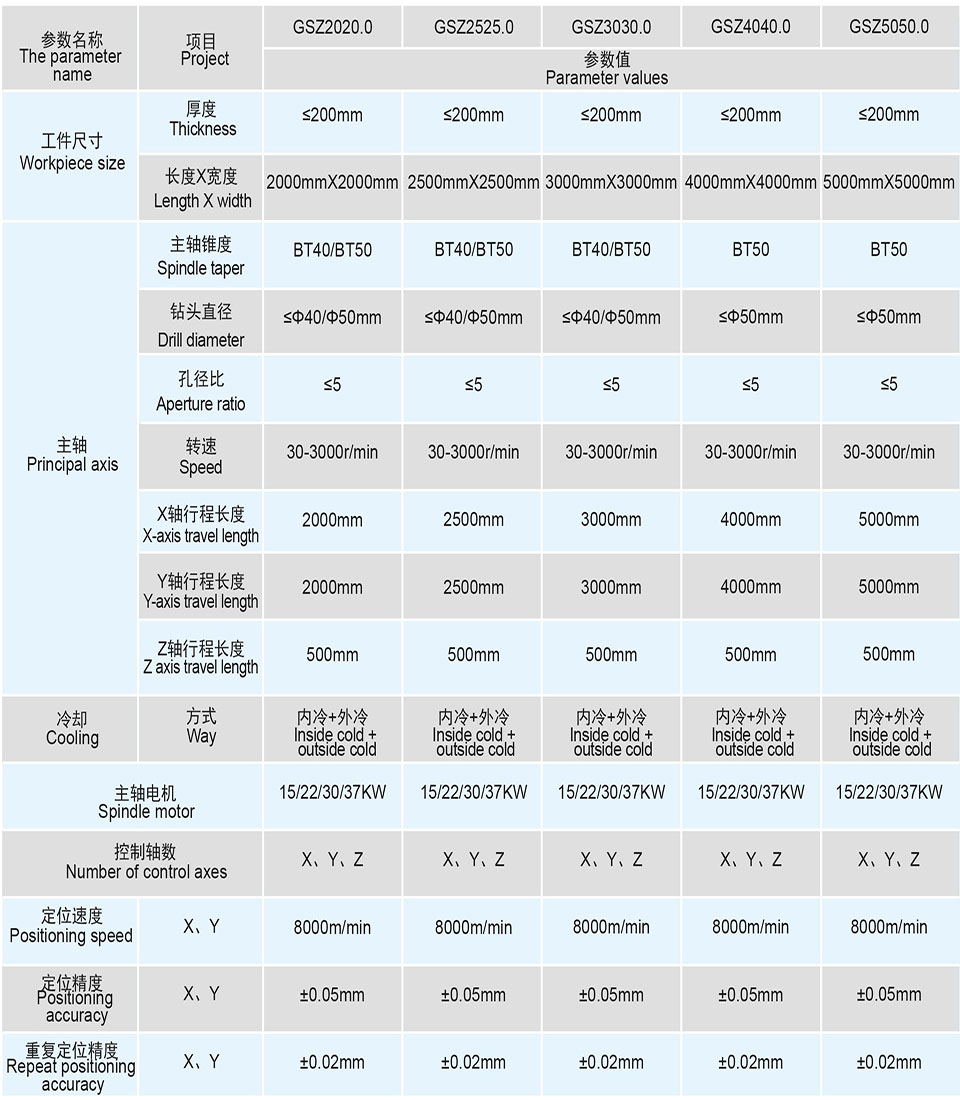

Technical Parameters

Note: Specifications can be customized according to customer requirements.
