Equipment Composition

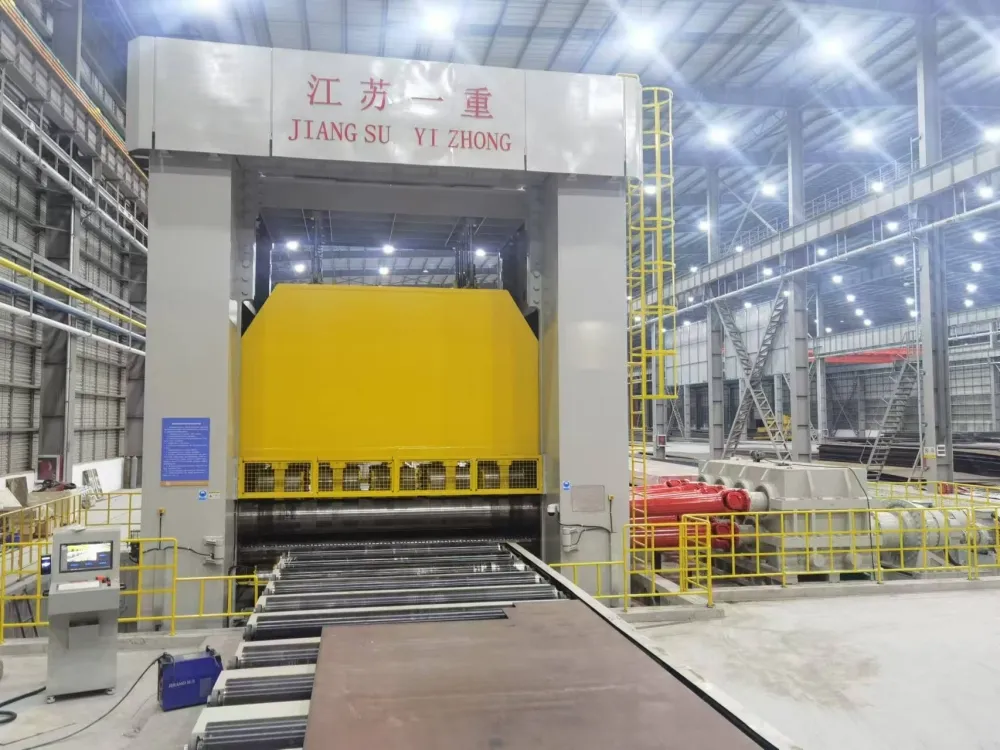

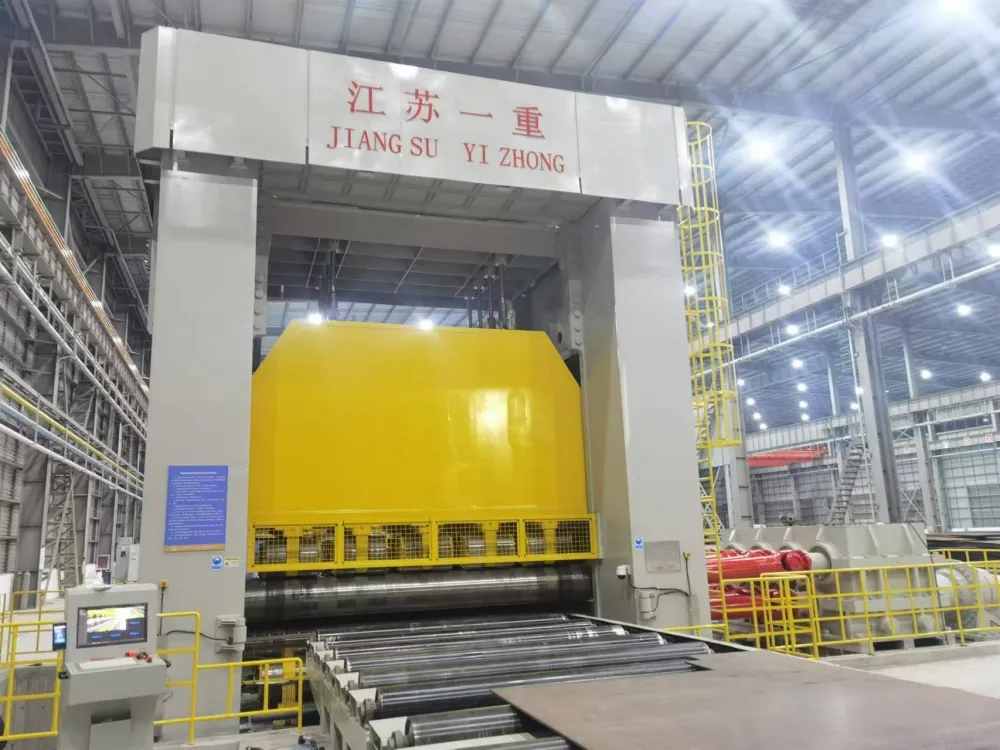

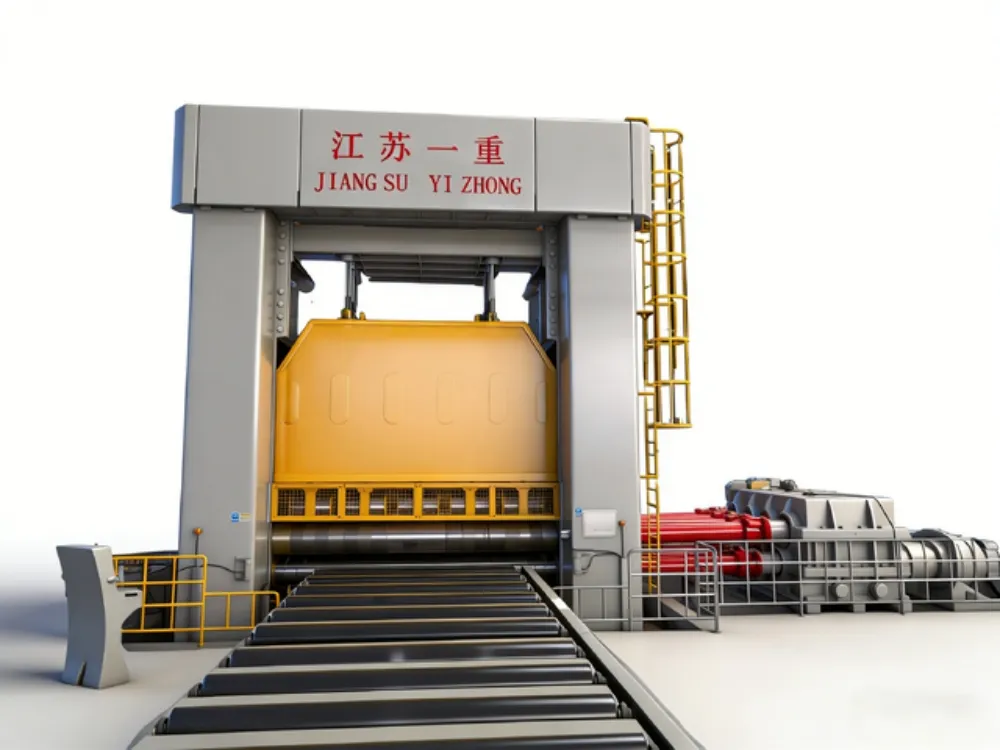

The CNC precision sheet Leveling Machine mainly consists of an infeed/outfeed roller table, a mainframe, work rolls, a movable crossbeam, a press-down mechanism, a main drive system, a lubrication system, a side guide roll device, a hydraulic system, a displacement display and detection device, an electrical CNC system, safety protection devices, and photoelectric devices.

Working Principle & Applications

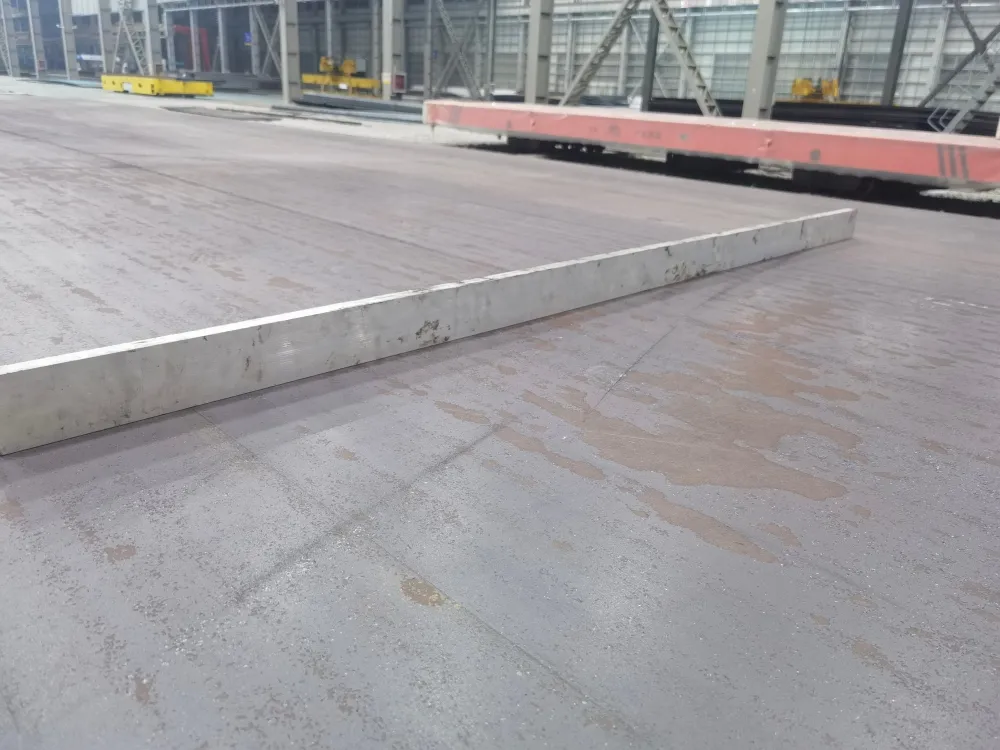

This machine utilizes the "Bauschinger effect" of materials to perform multiple repetitive bending on the plates. By gradually reducing the bending deflection, the plates are ultimately leveled to meet the required flatness precision. It is primarily used for leveling and stress relief of various plates, including plain carbon steel, low-alloy structural steel, hot-rolled or explosive composite plates, wear-resistant and weathering steel, stainless steel, aluminum alloys, and quenched and tempered plates.

Operating Environment & Requirements

Power Supply: Frequency 50Hz, Voltage 380/220V AC ±7% (3-phase, 5-wire system)

Operating Environment:

Operating Temperature: -10°C to 40°C, ensuring long-term stable operation within this temperature range.

Operating Humidity: Below 90%

Equipment Noise: 85dB

Working Medium Requirements:

Cooling Circulating Water: None required

Compressed Air: 0.4 - 0.6 MPa

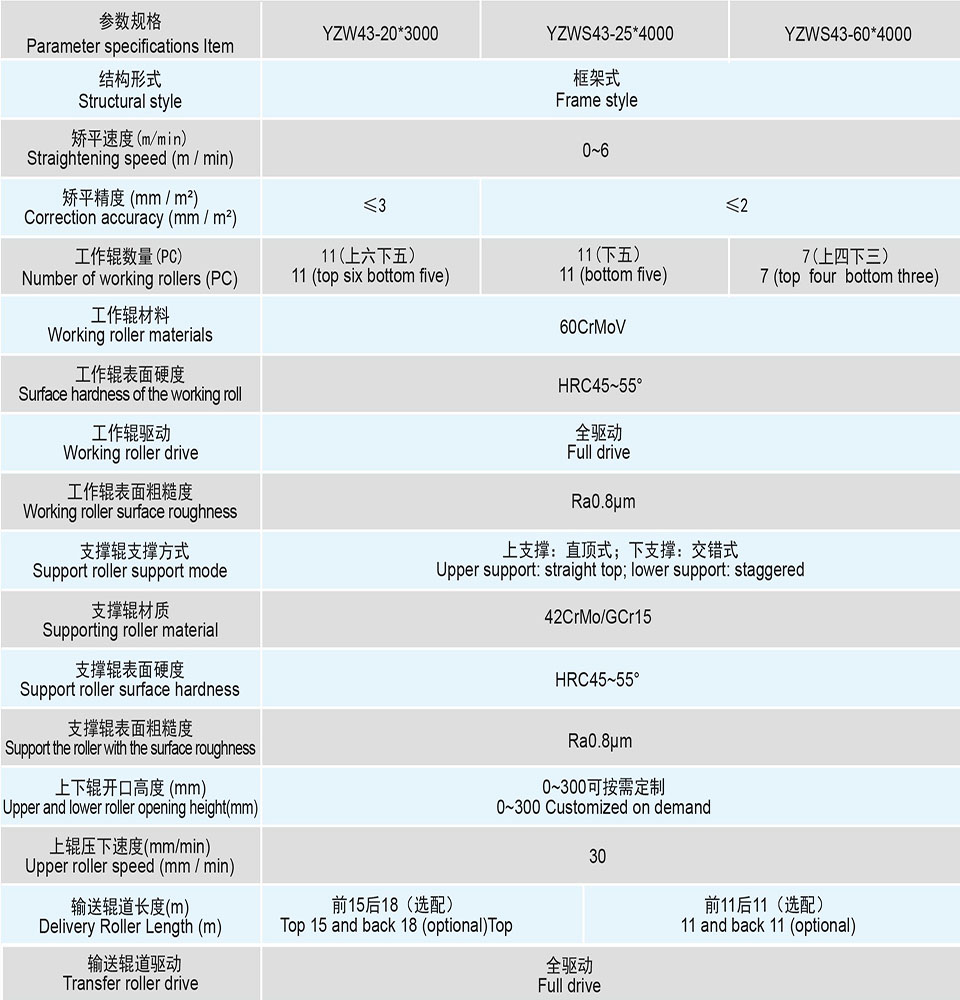

Technical Parameters
