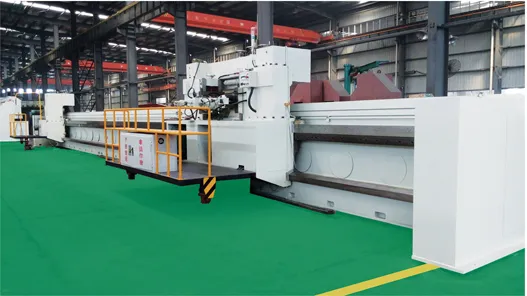

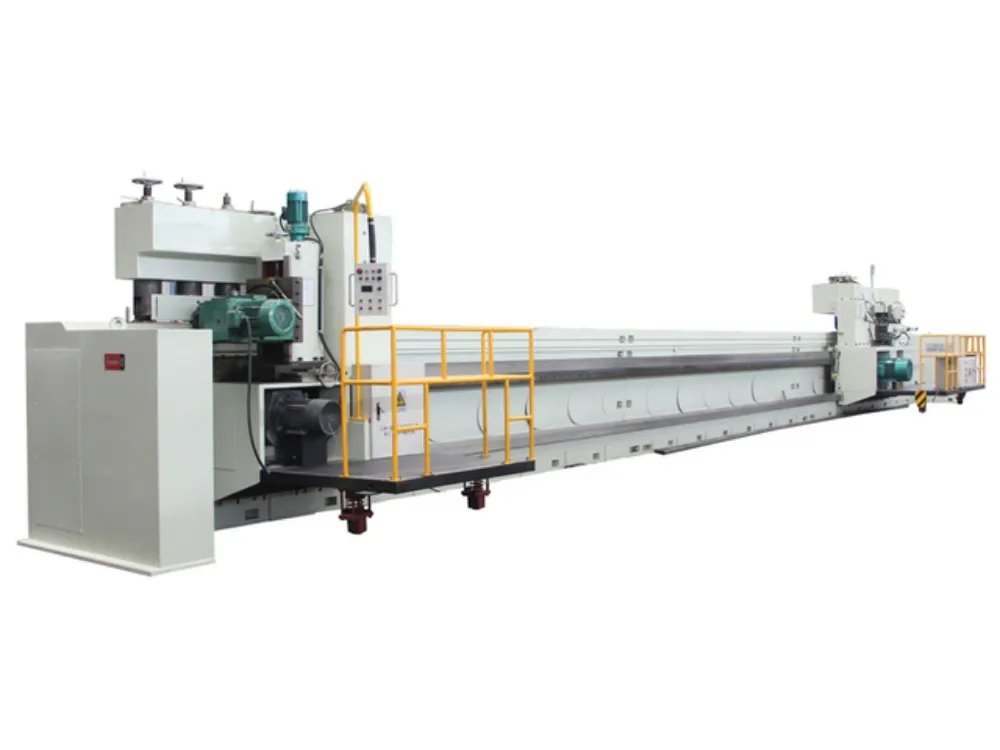

16m beamless edge planing machine

16m beamless edge planing machine

The pressure-beam-free edge planer features planing functions, flexible processing, one-pass forming, and a machining stroke of up to 30 meters, significantly improving processing efficiency and product quality.


Equipment Features:

Suitable for high-power cutting of medium and thick plates.

The follower-type clamping device replaces the traditional top pressure beam, eliminating any obstacles during loading and unloading. Workpieces can be directly hoisted into position by an overhead crane. This facilitates the clamping of heavy workpieces and greatly reduces auxiliary time for hoisting.

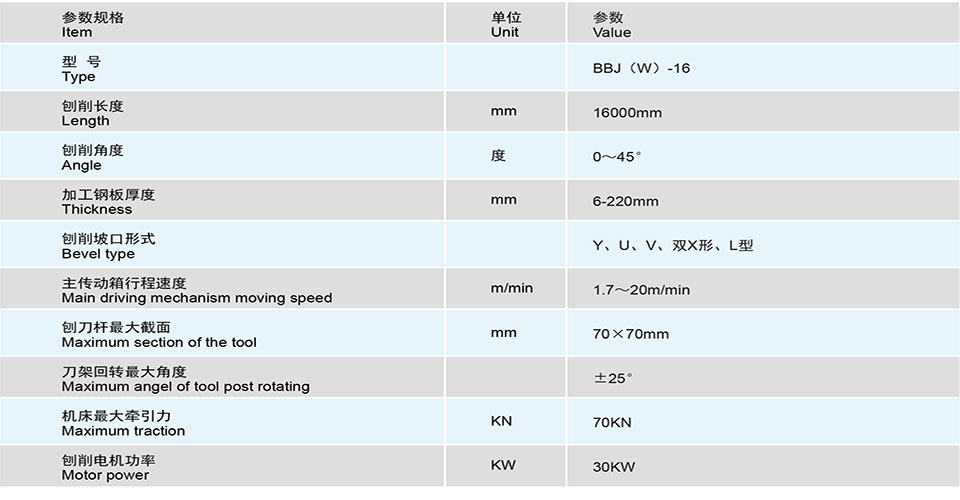

Technical Parameters


Note: Custom designs and manufacturing for any specifications are available according to customer requirements.
